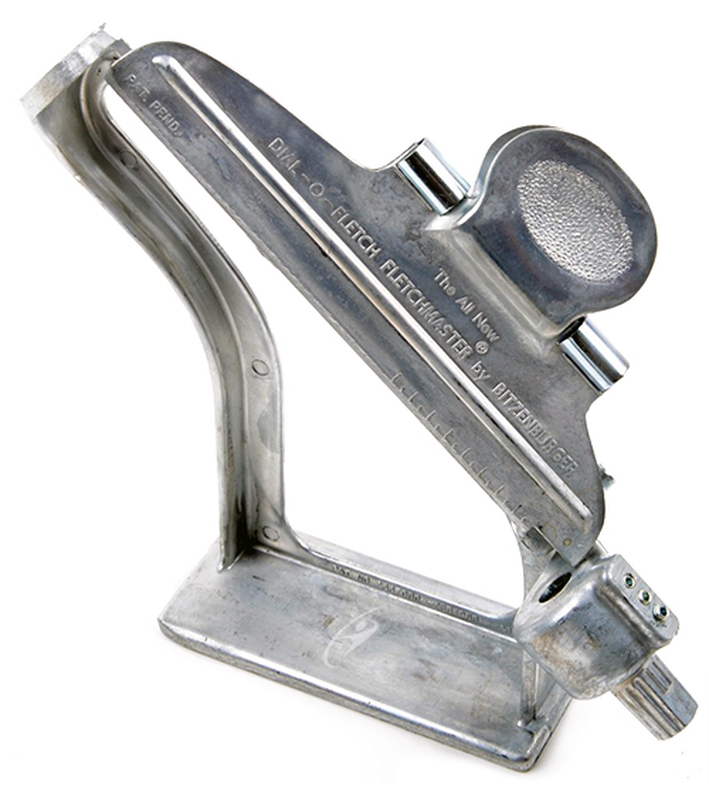

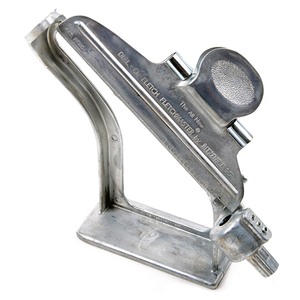

Bitzenburger Fletching Jig

Bitzenburger Fletching Jig

Bitzenburger Fletching Jig is the best fletching jig around; we use these exclusively for our in-house arrow building. Well made and offering a wide range of fletching options, but still simple to use.

Bitzenburger jigs have set the industry standard for fletching tools for over 50 years. It is today’s only true precision fletching instrument used by the majority of major manufacturers of quality arrows around the world. Unparalleled quality along with simplicity, design and precision sets this fletching tool in a class by itself. Designed by experienced archers for the perfectionist who wants the finest fletcher in the world for perfect arrow making.

• Constructed of die-cast alloy, this self-supporting fletching tool features a strong permanent magnet which allows for very precise and uniform placement of all feathers and vanes.
• A self-centring shaft cradle will accept and centre any size shaft available today.
• Large dials at the top and bottom of the magnet holder make it easy to adjust your angle of fletching within seconds, to fletch straight, offset or true right or left helical.
• Feather spacing of 3 fletches 120 degrees, 4 fletches 75 degrees x 105 degrees, and 4 fletches 90 degrees can be selected by a slight screw adjustment.
• Optional nock receivers are available to achieve 60 degrees x 120 degrees 4 fletch or 120 degrees 3 fletch cock vane down or up.
• The clamp is helped at a 45 degrees angle so the arrow maker will have a clear view of the fletching at all times.
• All metal parts.
• Comes complete with wrenches and an instruction sheet.

A clamp is included with the jig either straight or helical depending on which option you choose, if you want both options then you can also purchase a spare clamp here.

The clamp comes with instructions which can also be viewed here.
