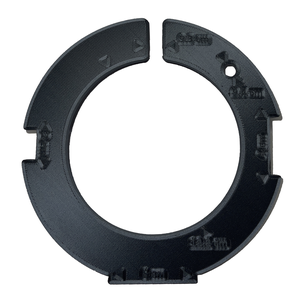

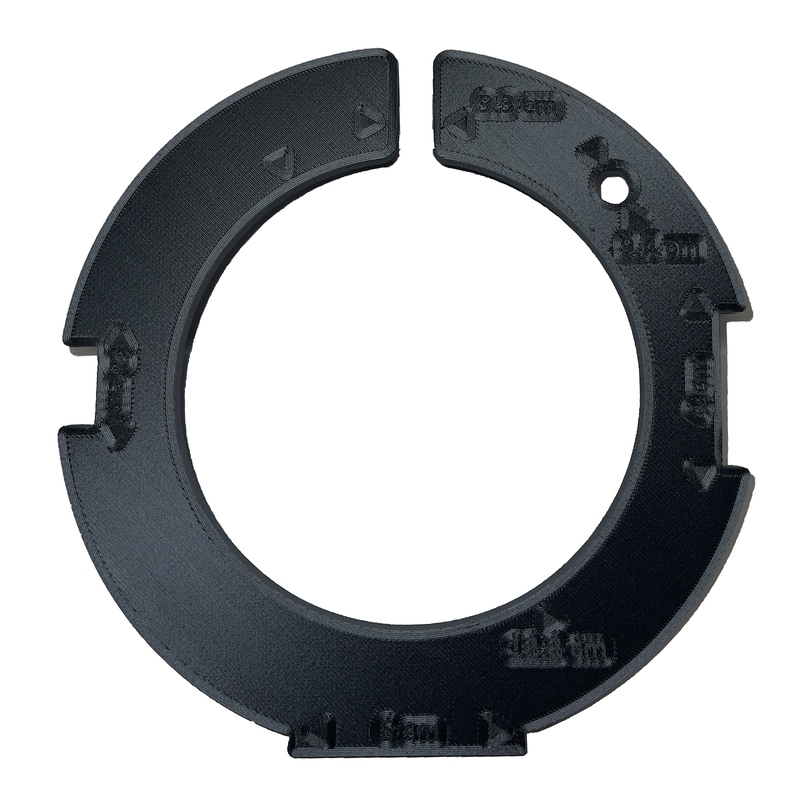

Archers Paradox Barebow Inspection Ring

This 3D-printed Archers Paradox inspection ring is the ideal tool for checking your setup to ensure it meets tournament specifications.

Measurements include:

9.3 mm slot to measure the maximum allowed diameter for world archery competitions
9.4 mm hole to measure the maximum point diameter for world archery competitions
4 cm cut-out to measure the maximum distance from the throat of the grip to the pressure button on recurve bows
2 cm cut-out to measure the maximum overall length of the sighting circle in the line of vision of the archer
2 cm cut-out to measure the maximum distance a pressure button can be mounted behind the throat of the grip on a barebow riser
6 cm ruler to measure the maximum distance a compound bow can have from the throat of the grip to the pressure point of the arrow rest (Where the arrow contacts the rest)
12.2cm inner diameter of the ring to allow you to check the maximum allowed overall diameter of the unbraced bow in the barebow class

More Product Info

Price:
£25.00

Shipping Band:
Shipping costs are estimates, please click below for more information.
Shipping Band A (£2.90)
